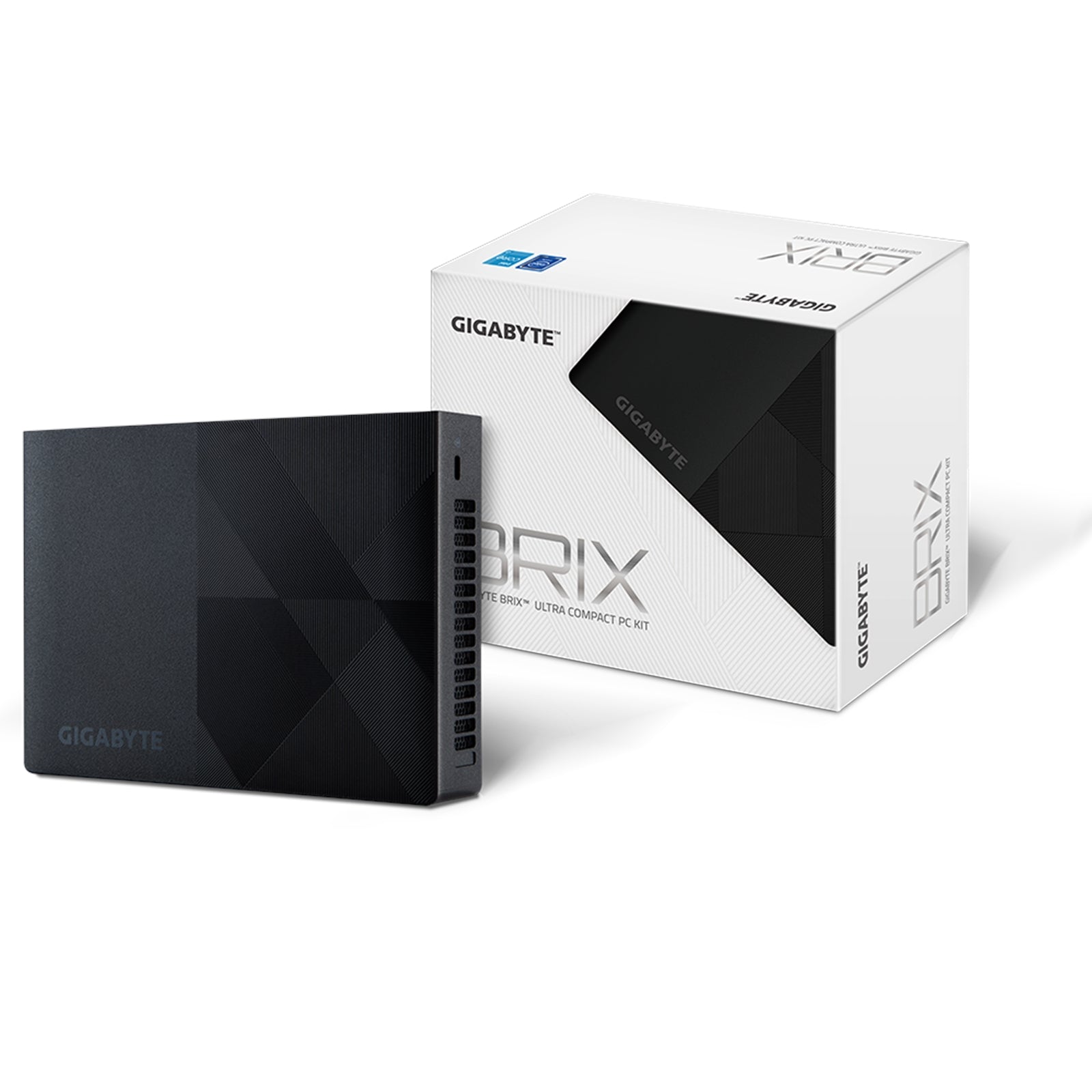

Gigabyte BRIX (GB-BN1P-N200) Barebone Kit, Intel N200 3.2GHz Quad Core CPU, 1 x DDR4 SO-DIMM Slot, 2 x M.2 2280 Slots, Wi-Fi 6 & Bluetooth 5.2

USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.

Support HDMI 2.1 / DP 1.4 Dual Output
HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4.

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.

Dimension
163.5 x 116.8 x 28.5 mm
0.54 L

Motherboard Size
154 x 110 mm

CPU
Intel¨ Processor N200
CPU 3.2G-3.7G Turbo, 4C/4T Core, 6MB L3 Cache

Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB

LAN
2.5GbE LAN (Realtek RTL8125)

Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics
Intel UHD Graphics 750

Audio
Realtek ALC897

HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10
Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2

Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi+Bluetooth card)

Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64bit

Environment
System Environment Operating Temperature: 0¡C to +35¡C
System Storage Temperature: -20¡C to +60¡C
