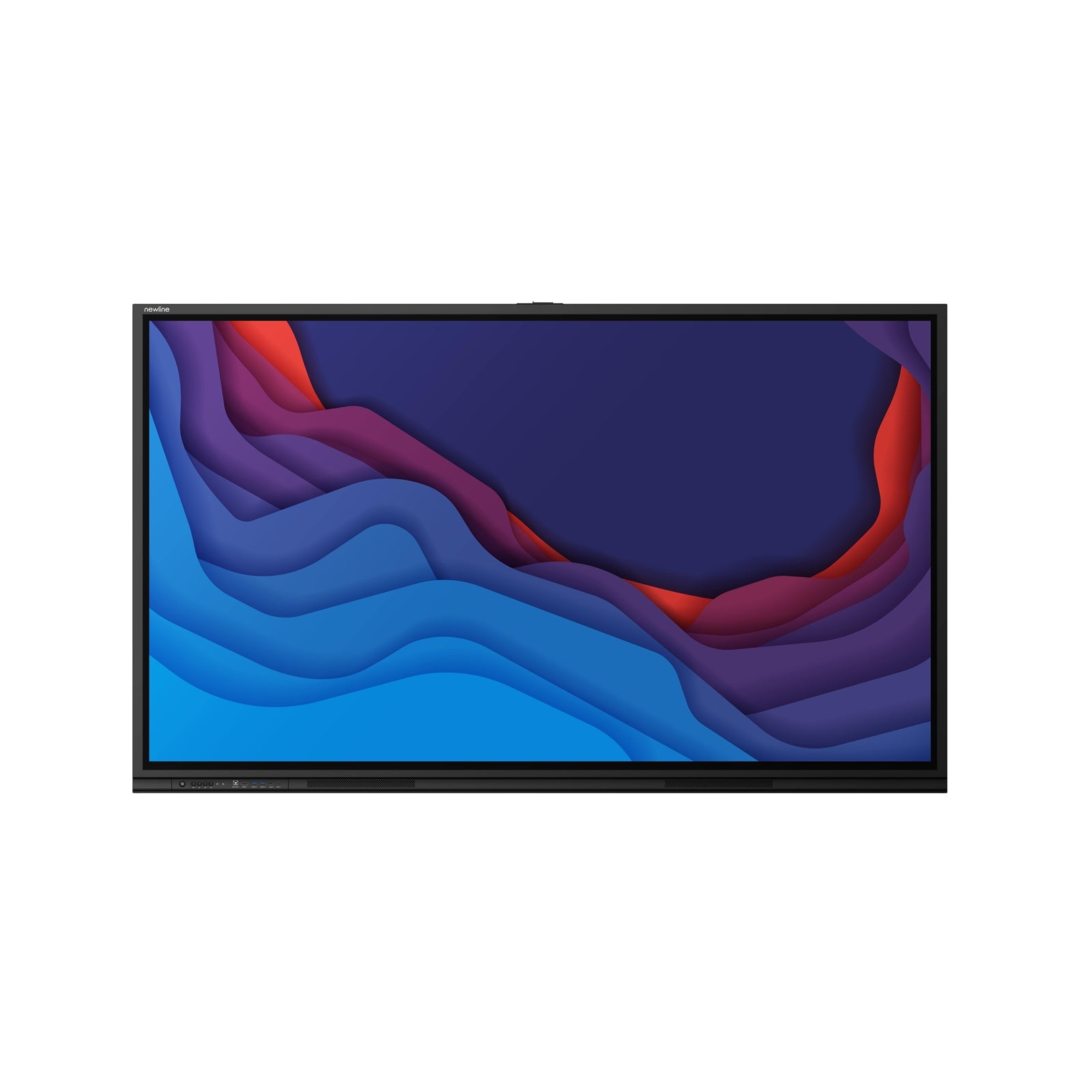

Newline TT-8623C 86" C Series Interactive Touch Screen (No On-board OPS)

Newline 86" Non-system Touch Screen

SIMPLICITY MADE FOR EVERY USER
A 4K interactive display that is ready when you are. Just connect your device to start, no setup, no hassle, and no learning curve. With paper-like writing, 40 touch points, built-in speakers, and Plug and Play USB Type-C connectivity, it is a complete solution. Designed to be easy and effective, the Newline C Series keeps
you focused on teaching or teamwork, not on technology.

BUILT-IN COMPUTER INTEGRATION
Complete your display with an embedded OPS PC, bringing Windows directly to your display for a seamless all in one experience. Turn it on and get started!

ALL YOUR APPS AND FILES, INSTANTLY READY!
With Plug and Play, just connect one USB-C cable for instant audio, video, power, data, and touch. No delays, just start working.

Specifications

MODEL
C Series 86" TT-8623C

PANEL
Backlight Direct LED
Glass Surface Anti-Glare Glass
Bonding Technology Certified Zero Bonding
Display Area
86": 1896 x 1066 mm
Display Ratio 16:9
Resolution 3840 x 2160 (4K)
Colours 1,07 Billion
Brightness
86": 450 cd/m²
Contrast Ratio 4000:1
Response Time 5 ms
Viewing Angle 178degrees
Display Life Time = 50 000 hours
Transparency > 88%
Haze 2 % ~ 5 %
Touch Surface Hardness 7 MoHs, Pencil 9H

POWER CONSUMPTION
Standard Mode*
86": 146 W
Standby mode* <0.5 W

TOUCH
Touch Technology Stellar Touch Technology
Touch Points 40 Windows
20 Android/MAC/Linux
Touch Screen Writing Tools Passive pen, Finger, Fist
Number of stylus 2
Accuracy ±1 mm

SPEAKER
Speaker Position Front Facing
Speaker Rated Impedance 6 O
Speaker Max.Power Output 15 W x 2

FRONT I/O
USB Type-C 1
HDMI IN 2.0 (4k @60 Hz) 1
USB 2.0 Type-B (Touch) 1
USB 3.0 Type-A (Dynamic) 2
Microphone In (Jack 3.5 mm) 1

REAR I/O
HDMI IN 2.0 (4k @60 Hz) 2
USB 2.0 Type-B (Touch) 1
USB Type-A 2.0 (Dynamic) 2
USB Type-A 2.0 (Embedded) 1
RS232 1
RJ45 (Gigabit) In x 1 / Out x 1
OPS Slot 1
SPDIF 1
Audio Line Out (Jack 3.5 mm) 1
VGA In 1
USB Type-C (Camera Slot) 1

SMART SYSTEM
SoC Chipset Arm Cortex-A55 x 4
RAM 2 GB
Total Storage 8 GB
Operating System No OS

DIMENSIONS / WEIGHT
Outline Dimensions*
(Excl. wall mount)
86": 1981 x 1186 x 111 mm
Net Weight*
86": 74 Kg
VESA*
86": 800 x 400 mm
