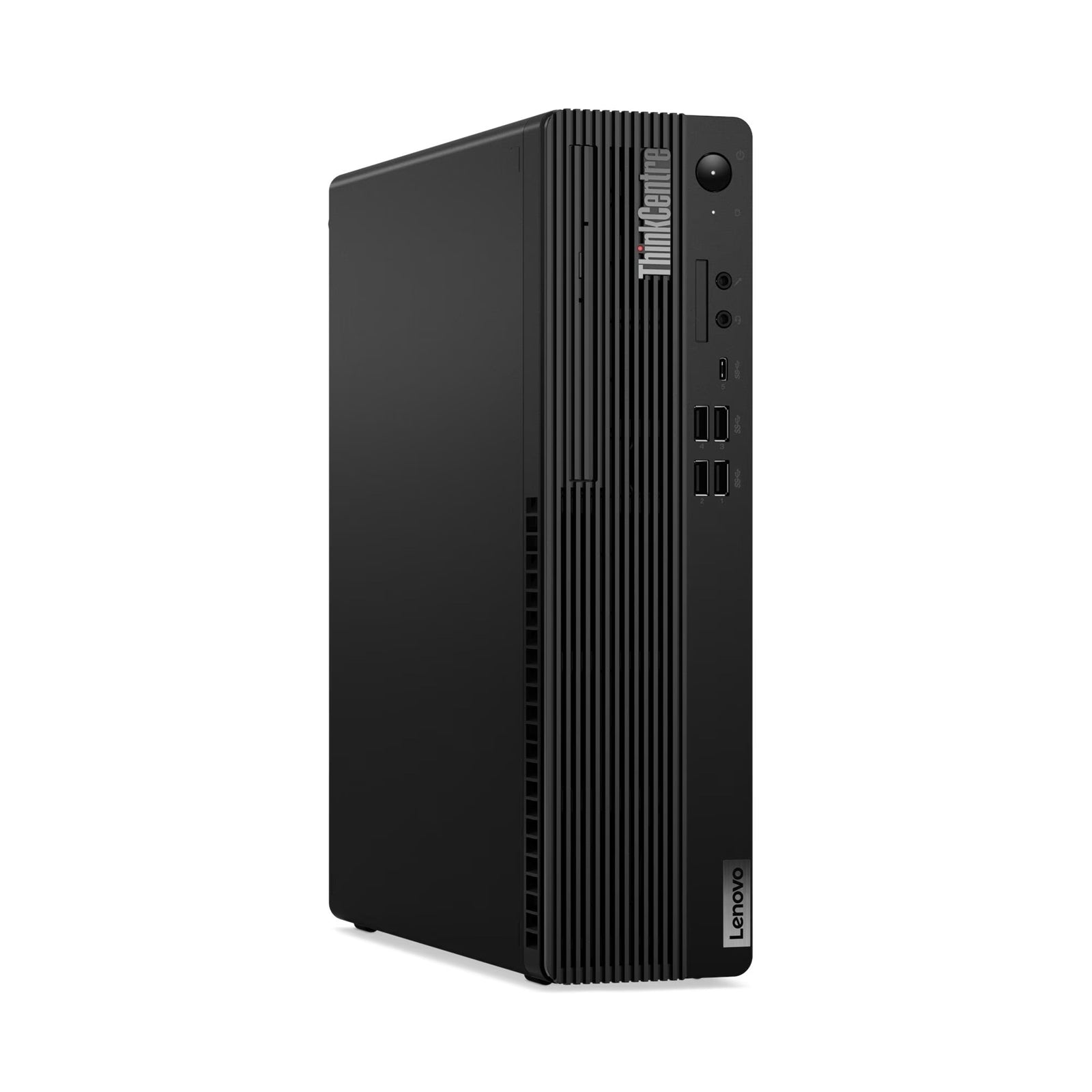

Lenovo ThinkCentre M70s G5 12U80003UK SFF PC, Intel Core i5-14400T 14th Gen, 16GB DDR5 RAM, 512GB SSD, Intel UHD Graphics 730, Windows 11 Pro with Keyboard and Mouse and 3 Year Onsite Warranty

PERFORMANCE

Processor
Intel® Core™ i5-14400 (10C: 6P + 4E / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB Intel® Smart Cache)

Graphics
Integrated Intel® UHD Graphics 730

Chipset
Intel® Q670 Chipset

Memory
16GB DDR5-4800 (1 x 16GB UDIMM)

Memory Slots
Two DDR5 UDIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5

Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® (Opal 2.0)

Max Storage Support
Up to three drives:
1 x 3.5" HDD (up to 2TB)
1 x 2.5" HDD (customer self-upgrade)
1 x M.2 SSD (up to 2TB)

Card Reader
3-in-1 Card Reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers
1W x1

Power Supply
260W (90% efficiency)

DESIGN

Keyboard
USB Traditional Keyboard, Black, English (UK)

Mouse
USB Calliope Mouse, Black

Optional Bay
None

Expansion Slots
1 x PCIe® 3.0 x16 (low-profile)
1 x PCIe® 3.0 x1 (low-profile)
2 x M.2 slots (1 for WLAN, 1 for SSD)

Case Color
Black

Stand
None

Dust Filter
None

Pen
Not supported

Form Factor
SFF (8.2L)

Dimensions (W x D x H)
92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)

Weight
Approximately 5.3 kg (11.7 lbs)

CONNECTIVITY

WLAN + Bluetooth
None

WWAN
Not supported

Ethernet
Integrated 10/100/1000M

Front Ports
1 x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with 15W charging
4 x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1 x Headphone / microphone combo jack (3.5mm)
1 x Microphone (3.5mm)

Optional Front Ports
1 x Card reader

Rear Ports
4 x USB-A (USB 2.0)
1 x HDMI® 2.1 TMDS
1 x DisplayPort™ 1.4a (HBR2, DSC)
1 x Ethernet (RJ-45)

Optional Rear Ports
None

SECURITY & PRIVACY

Security Chip
Discrete TPM 2.0 (TCG certified, FIPS 140-2 certified)

Fingerprint Reader
None

Physical Locks
Kensington Security Slot™ (3 x 7 mm)
Padlock loop

Smart Cable Clip
None

Chassis E-Lock
None

Chassis Intrusion Switch
Yes

MANAGEABILITY

System Management
Non-vPro®

SERVICE

Base Warranty
1-year Onsite

Included Upgrade
3 Year Onsite upgrade
1 Year Premier Support
CO2 Offset 1 ton (2nd Generation Carbon Offset Projects)

CERTIFICATIONS

Green Certifications
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0

Military Standard
MIL-STD-810H military test passed

SOFTWARE

Operating System
Windows® 11 Pro, English

Bundled Software
None
