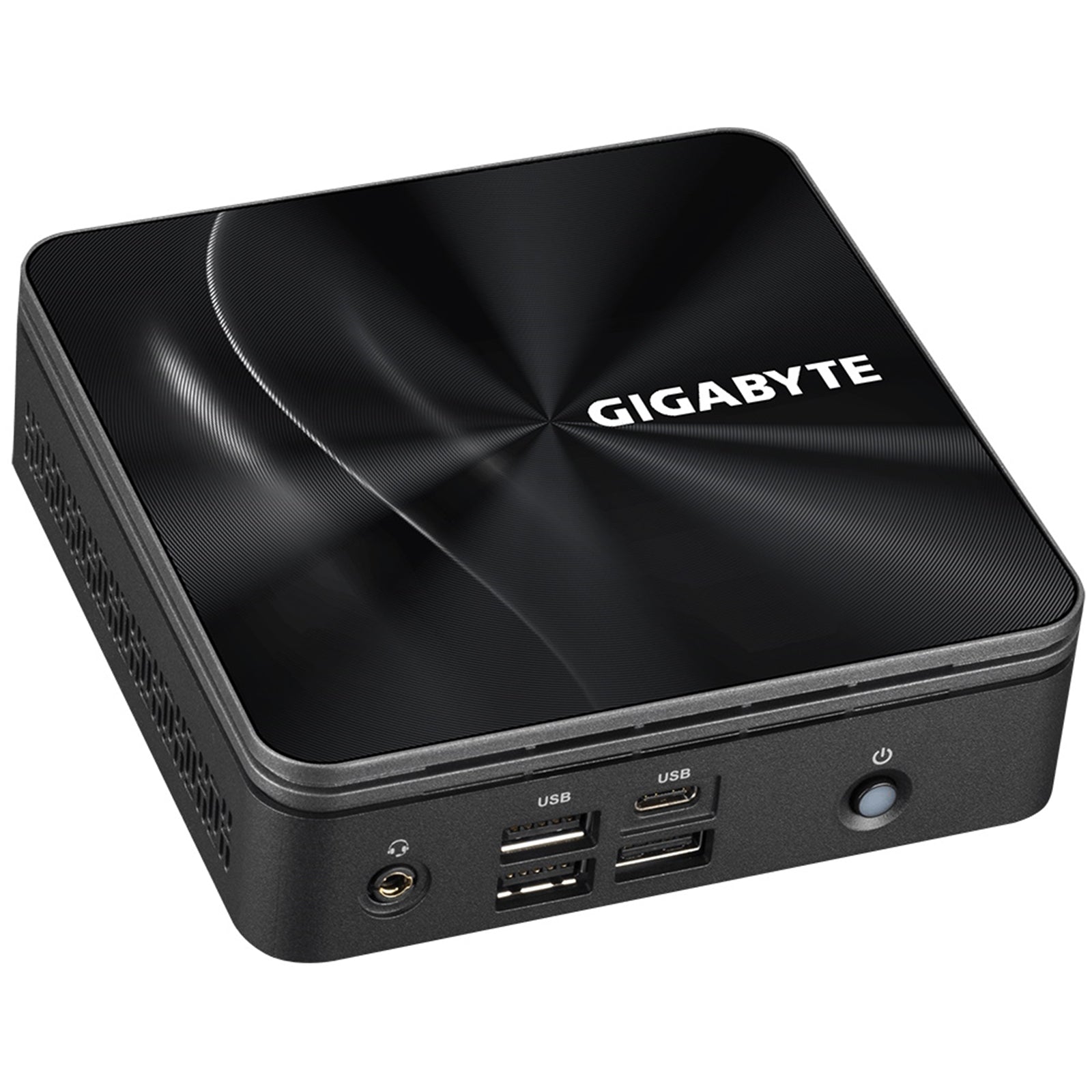

High Performance Ultra Compact AMD Ryzen 6 Core 6 Threads, 16GB Kingston RAM, 250GB Kingston NVMe, Wi-Fi 6, Quad Display PC

High Performance Ultra Compact

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.

AMD Ryzen 4000U series processors are based on the 7nm technology offering an incredible power efficiency leap. These new processors sport the Zen 2 core technology with 15% higher instructions per clock and 20% lower SOC power.

Dimension
34.7 mm x 119.5 mm x 119.5 mm

CPU
AMD RYZEN R5-4500U, 2.3GHz - 4.0GHz Turbo,
6C/6T Core, 11MB L3 Cache
AMD Radeon GPU 1500Mhz

Memory
1 x Kingston 16GB SODIMM 3200MHz
2 Lanes (1 occupied)
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX200
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
AMD Radeon Graphics

Audio
Realtek ALC255 HD audio

Video
HDMI2.0a ws HDCP 2.2
3840x2160@60Hz

Storage
1 x Kingston NVMe NV2 250GB Storage Drive

Front I/O
1 x Power Button
1 x USB 3.2 type C (Gen2) w/ DP alt mode
3 x USB type A 3.2 (Gen1)
1 x head phone jack with MIC

Rear I/O
1 x HDMI(2.0a)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19V/4.74A, 90W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
VESA Bracket Supplied

Support OS
Microsoft Windows (not installed)

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
